Choo Choo Lights Push-Connect Hub

Connect six lighting circuits without soldering or special plugs.

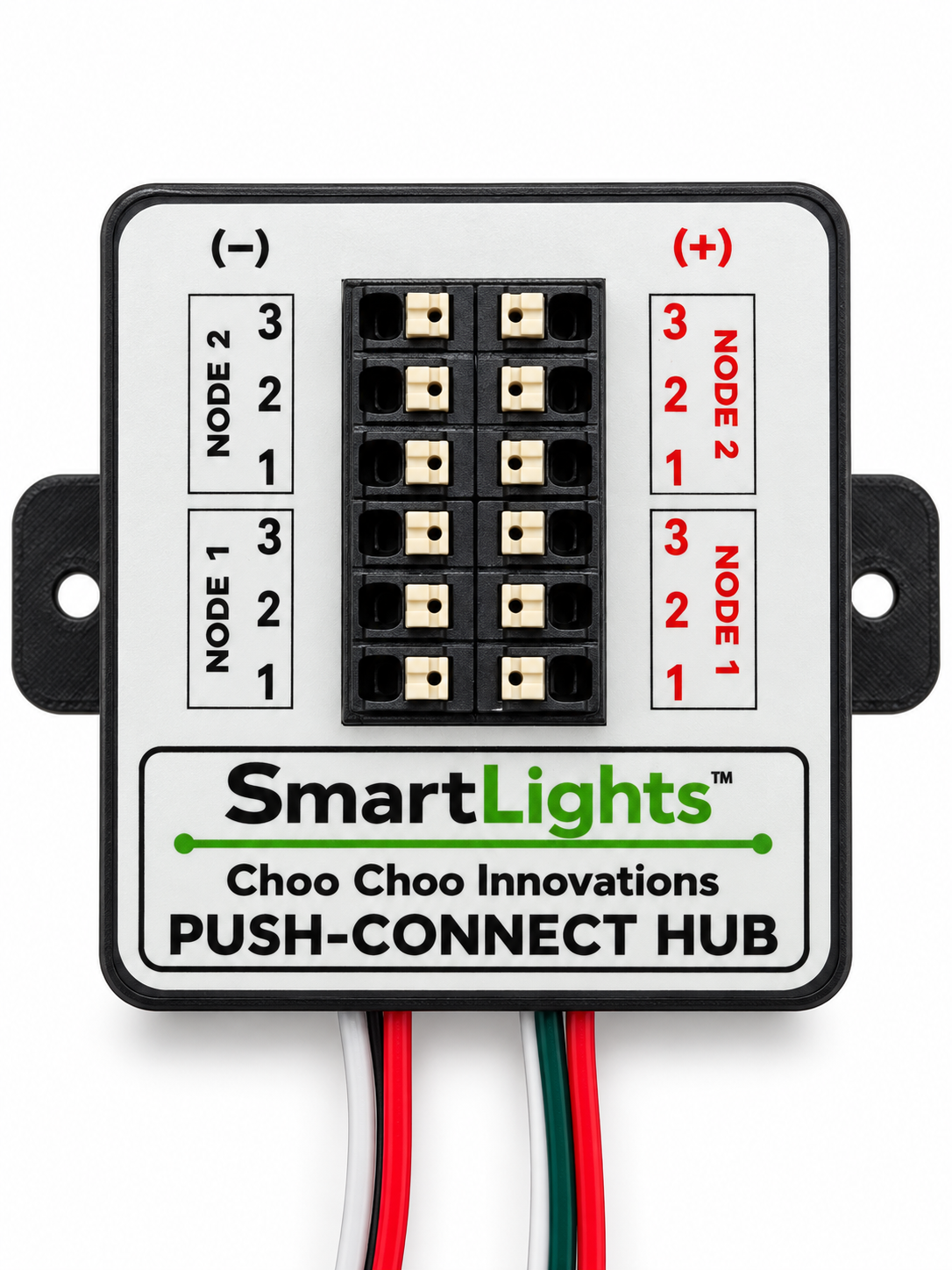

The Choo Choo Lights Push-Connect Hub adds six lighting ports to your Choo Choo Lights system. Connect lighting wires directly using easy-to-use push-connect terminals to light buildings, streets, and station platforms. Control traffic lights and trackside railroad signals through Choo Choo Lights automation and LocoNet/DCC integration.

Mount the hub close to your lights—even inside a model building. The Choo Choo Lights chain delivers power and control data to the hub, allowing short, local wiring above your layout.

What you can do

• Connect lighting wires directly to six push-connect ports—no soldering or special plugs required.

• Set building and street lighting levels for Day, Evening, and Night scenes.

• Add effects such as flickering lights and shimmering neon signs.

• Adjust brightness, scenes, and effects from your phone, tablet, or computer.

• Control traffic lights and trackside railroad signals through Choo Choo Lights automation and LocoNet/DCC integration.

• Connect the hub to your Command Center or another node or hub in the Choo Choo Lights chain.

Included

1 Choo Choo Lights Push-Connect Hub.
SKU: CCL-PH-1PK

Required separately

A Choo Choo Lights Command Center and compatible lights. A correctly sized resistor is required for LED circuits.

Connections and specifications

12V supply. Maximum 18 mA per port.

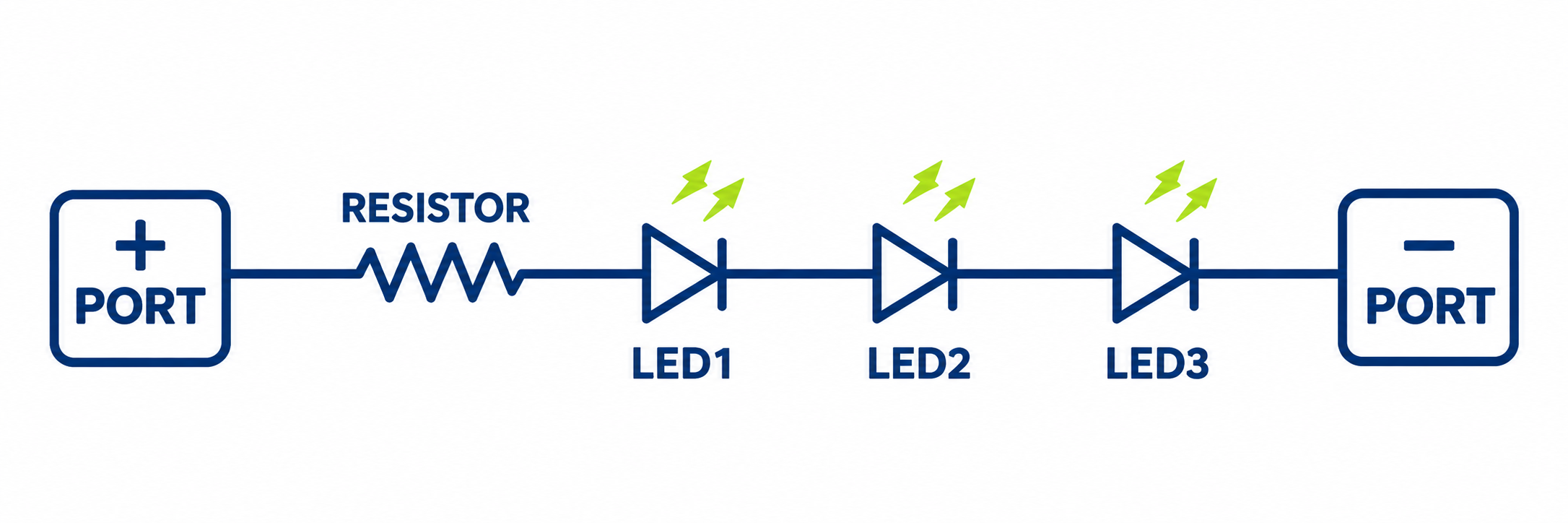

Connect up to three LEDs in series per port, subject to the LEDs’ voltage requirements on a 12V supply. Use a correctly sized resistor and observe polarity.
